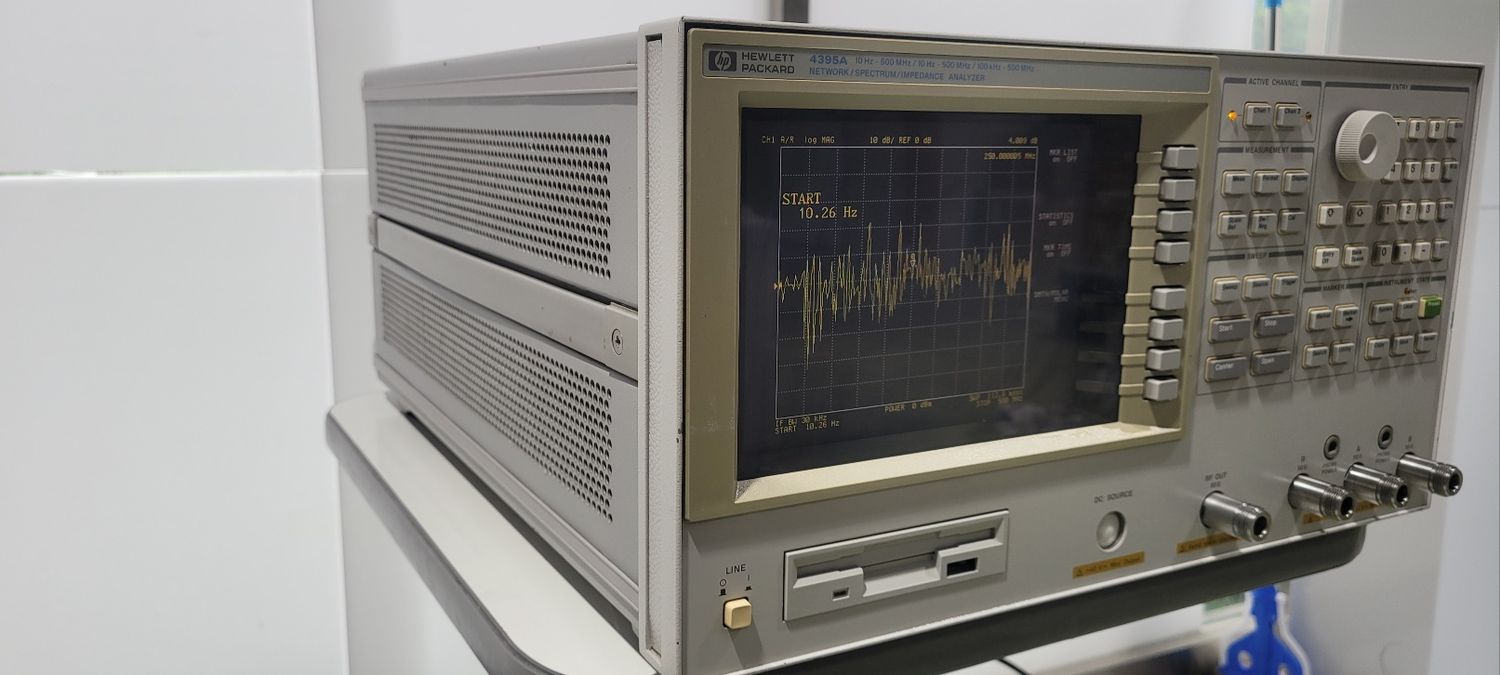

Exploring the HP 4395A Network/Spectrum/Impedance Analyzer

The HP 4395A is a versatile and powerful tool designed for RF and microwave measurements, widely used in research, development, and quality control across industries. As a combination of a network analyzer, spectrum analyzer, and impedance analyzer, it offers comprehensive measurement capabilities in a single, compact unit.

Key Features and Capabilities

The HP 4395A covers a frequency range from 10 Hz to 500 MHz, making it ideal for analyzing low-frequency circuits and RF systems. It provides accurate measurements of gain, phase, impedance, and power characteristics, enabling engineers to thoroughly evaluate components and systems.

This analyzer is renowned for its high dynamic range and low phase noise, essential for precise measurements. Its user-friendly interface, including a large display and intuitive controls, makes it accessible even for users who are not experts in RF analysis. Additionally, its built-in calibration features reduce measurement errors and ensure reliable data.

Applications in Industry

The HP 4395A is used extensively in telecommunications, electronics manufacturing, and educational institutions. It is ideal for tasks such as antenna analysis, filter testing, and frequency response characterization. Its impedance analysis function is particularly beneficial for analyzing components like capacitors, inductors, and resonators.

In research and development, the HP 4395A assists engineers in designing and testing RF circuits. The analyzer’s ability to display Bode plots, Nyquist diagrams, and Smith charts simplifies complex data interpretation, making it invaluable for academic and professional applications.

Why Choose the HP 4395A?

One of the major advantages of the HP 4395A is its versatility. Instead of using separate devices for network, spectrum, and impedance analysis, engineers can leverage this all-in-one solution. This not only saves space and costs but also streamlines the measurement process. Moreover, its high resolution and accuracy make it a reliable choice for critical measurements.

The HP 4395A also supports external control via GPIB, allowing integration into automated test setups. This feature is particularly useful in production environments where consistency and efficiency are paramount.

Maintenance and Calibration

To maintain optimal performance, regular calibration is recommended. Fortunately, the HP 4395A features built-in self-test functions and easy-to-follow calibration procedures, which help minimize downtime. Users should also ensure proper handling to avoid damage to its sensitive RF components.
